A lab spray dryer converts liquid substances into dry powders via spray drying. This method atomizes liquid into fine droplets, rapidly drying them inside a stream of hot air.
The SP-1500 is a compact, standalone laboratory unit featuring a large colourful LCD touch screen. Key components—including compressors, fans, heaters, and nozzles—are imported from globally recognized brands. This equipment offers excellent stability and a high product collection rate, earning widespread recognition from customers.
The SP-1500 spray dryer is ideal for producing fine particle powders in laboratories at universities, research institutes, and food, pharmaceutical, and chemical enterprises. Furthermore, it is suitable for drying various solutions, emulsions, and suspensions. Additionally, it is well-suited for heat-sensitive substances, such as biological products, biopesticides, and enzyme preparations.
| Description | Data |
| Evaporation Water Rate | 1500ml/h |
| Inlet Air Temperature | 30°C – 280°C |
| Outlet Air Temperature | 30°C – 140°C |
| Heating Temperature Accuracy | ±1°C |
| Drying Time | 1.0-1.5s |
| Peristaltic Pump Feed Rate | 30-1500mL/h |
| Minimum Feed Rate | 30mL |
| Dry Air Flow | Max.0-330m3/h max. 686Pa |
| Compressor Required | 4.2m3/h, 2-5bar |
| Power Supply | 3.5kw, 230v-50Hz |
| Dimensions (L × W × H) | 650 × 500 × 1550mm |
| Weight: | 120kg |

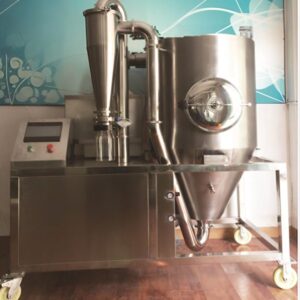

The SP series spray dryer is an advanced drying system, continuously refined through multiple enhancements based on domestic and international spray dryer designs. It is ideal for low-temperature drying and processing of viscous liquid materials. Nozzle Atomizer style is also available on request.
- Air Filtration & Heating: Cold air passes through a filter before entering the heater to reach your target temperature.
- Air Distribution: Heated air flows into the top distributor, moving spirally downward inside the spray tower.
- Spray Drying: Droplets contact hot air directly. Water vaporizes almost instantly for efficient drying.
- Product Separation: A cyclone separator discharges the dry product while an induced draft fan removes waste steam.
- The drying process takes only 5 seconds, protecting active ingredients.
- A large tower diameter accommodates diverse materials, while adjustable temperatures offer broad operational ranges.
- Easy-access cleaning doors and mirror-polished surfaces prevent material buildup and dead corners.
- U-shaped heating tubes prevent weld cracks from thermal expansion and ensure high energy efficiency.
- Water Evaporation Rate: 5 kg/h
- Electric Heating Power: 18 kW
- Inlet Air Temperature: 30°C – 250°C
- Outlet Air Temperature: 60°C – 120°C
- Control System: Colour touch screen with real-time temperature curve display and ±1°C accuracy.
- Dimensions & Weight: 1800 × 1000 × 2200 mm | 300 kg
The SP-2000 is a high-performance, fully self-contained unit requiring no external auxiliary equipment. It features a large color LCD touchscreen and reliable international components like peristaltic pumps and heaters.
Operating at low temperatures of 50–110°C, it produces free-flowing powders with high yields. It is ideal for heat-sensitive materials such as traditional Chinese medicine extracts, fruit juices, and volatile polymers.
- Low-Temperature Processing: Operates safely at 50–110°C to eliminate thermal stress.
- High Automation: Features touch-screen PID regulation and an adjustable peristaltic pump (up to 1500 mL/h capacity).
- Narrow Particle Distribution: Creates smooth powder fluidity with very low laboratory noise levels.
- Automatic Jet Cleaner: Features an unclogging needle to maintain continuous operation.
- Plug-and-Use Design: Compact, aesthetic, and mobile.
Explore Noggrann UHT LAB SCALE STERILIZER for your lab application.
A lab spray dryer converts a liquid feed (solution, suspension, or emulsion) into a dry powder. It works by atomizing the liquid into fine droplets and instantly evaporating the solvent using a stream of hot air or gas.
Spray-dried powders usually range from 10 to 500 microns in diameter, with the size controlled by the feed rate, atomization pressure, and the specific nozzle used.
They are essential for R&D in the Pharmaceutical (microencapsulation, APIs), Food & Beverage (flavors, dairy), Chemical, and Biotechnology industries due to the control and scalability they offer.
Inlet temperature dictates the drying rate; too high can cause degradation or sticking. Outlet temperature reflects the final moisture content; a lower outlet temperature usually indicates higher residual moisture.
To increase yield, ensure the cyclone separator seals are airtight, optimize the outlet temperature to reduce product sticking to chamber walls, and verify the correct balance between air and feed flow rates.
Clogging is typically caused by high-viscosity feeds, high solids content, or particulate matter in the feed solution. Using proper pre-filtration and adjusting the feed concentration are the best solutions.
Yes. Due to the extremely short residence time (typically 1 to 1.5 seconds) in the drying chamber, heat exposure is minimal, making it ideal for sensitive materials like enzymes, proteins, and vitamins.
For highly heat-sensitive materials, low temperature with vacuum spray drying technology is employed. This allows for powder production at temperatures of 50–110°C, significantly reducing thermal stress
