The JVK® LFP 150 is the industry standard for bench-scale material characterization, serving Australian mining and research laboratories. Designed specifically for laboratory environments, this high-pressure filtration unit allows researchers to simulate full-scale industrial processes, ensuring that laboratory test results translate directly to plant-scale efficiency.
Scalable Filtration Data: Bridging the gap between laboratory tests and pilot-plant operations with high-precision pressure and cycle control.
Advanced Membrane Simulation: Supports membrane squeeze testing—essential for predicting cake moisture reduction in mineral processing.
Modular Flexibility: Interchangeable chamber depths (15–50 mm) and plate configurations to adapt to diverse slurry rheology.
Durable Engineering: Built with JVK’s high-grade polypropylene for maximum chemical resistance in mining and chemical laboratory applications.
Process Versatility: Integrated capabilities for pressure filtration, cake washing, air-drying, and thermal cake treatment.
The JVK® LFP 150 outperforms standard laboratory units in key areas critical for accurate process scaling
| Feature | JVK® LFP 150 | Standard Lab Press |
| Max Filtration Pressure | High-Performance (Optimized) | 6 – 10 bar |
| Membrane Squeeze Pressure | Up to 60 bar | 12 – 15 bar |
| Chamber Depth | Variable (15 – 50 mm) | Fixed (15 – 30 mm) |
| Construction Material | Premium Polypropylene / PVDF | Standard Polypropylene |
| Cloth Change System | SnapFit® (Screwless) | Manual Fastening |
| Advanced Processing | Thermal drying, Air-drying, Washing | Limited to basic filtration |
Mining & Mineral Processing: Tailings characterization, mineral concentrate recovery, and slurry rheology testing.
Chemical Engineering: Batch-process optimization, fine-particle separation, and high-purity chemical testing.
Sludge & Wastewater: Accurate dewatering feasibility studies and flocculant dosage optimization.
Access full engineering data and plate configurations directly from JVK Filtration Systems.
Size: 150×150 to 500×500 mm
Application: in all industries
Special features:

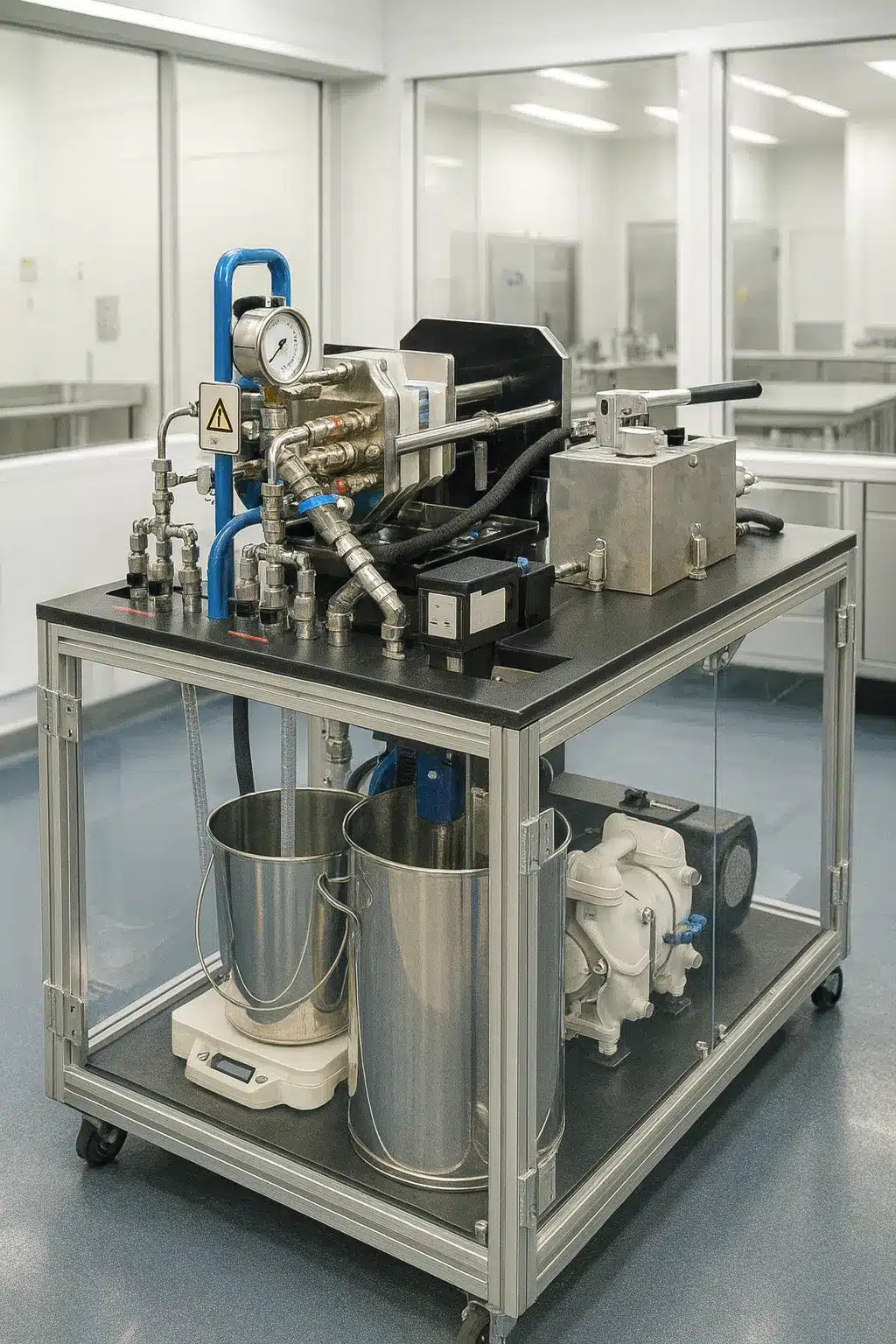

The JVK® LFP 150 laboratory filter press was developed to investigate new challenges in suspension and cake treatment and to improve existing applications. It is designed to allow for the demonstration and testing of various cake treatment processes.
The compact design allows for on-site use at the customer's location. When used with pneumatically controlled pumps, a compressed air network with an operating pressure of 6 bar is sufficient. The appropriate chamber depth is set by selecting the correct filter frame thickness.
The JVK® LFP 150 laboratory filter press, type Gamma, can also be implemented as a mobile version.

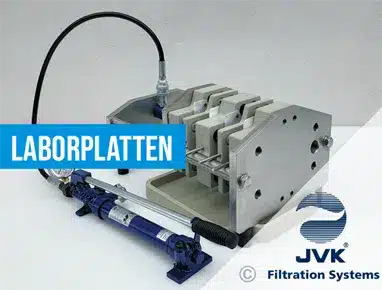

Available plate types
Looking for replacement filter plates instead? See our industrial filter plates range
We offer a versatile range of materials including lightweight, chemically resistant Polypropylene (PP) and high-temperature PVDF. For advanced dewatering, JVK exchangeable membrane systems allow for active post-pressing of the filter cake, which significantly reduces residual moisture. These membranes are available in various elastomers (like EPDM, NBR, or FKM/Viton) and can be replaced without changing the entire plate, reducing long-term maintenance costs.
JVK laboratory filter plates are engineered for high-performance research and pilot plant operations. They typically operate at filtration pressures of 6 to 15 bar, with specialized membrane squeezing capabilities reaching up to 60 bar. Depending on the material choice (Polypropylene or PVDF), they can withstand temperatures ranging from –20°C up to 140°C, making them suitable for aggressive chemical environments and heat-sensitive processes.
Yes. High-precision laboratory units like the JVK® LFP 150 are engineered to precisely mimic full-scale industrial conditions. By selecting the correct filter frame thickness, you can vary chamber depths from 15 to 50 mm, allowing your team to accurately calculate parameters for larger production lines.
The unit is designed to evaluate a complete filtration cycle on-site. It allows your R&D team to test standard pressure filtration, membrane squeezing (post-pressing up to 60 bar), air blowing, cake washing, and specialized thermal cake drying.
